Precast Bunker & Shelter Systems
Factory-cast bunker shells, box culverts, C-Channels, T-Walls, and U-Channels for underground shelter, utility, and protective construction.
Indicative price AED 18000 – 60000 Subject to specification and quantity. Final quote on request.
Inquire on WhatsApp
Product Description
Product Overview
PRECAST UAE manufactures precast bunker and shelter components used in underground bunker construction, protective rooms, and security-driven concrete packages. The demand we see is not just for a finished bunker shell. Clients also ask for the individual structural units used inside the assembly, especially C-Channel, T-Wall, and U-Channel precast forms.
Also known as: In the UAE market, the same rectangular precast enclosures are commonly specified as box culverts (or “culvert box” / “RCC box culvert”). The geometry is the same — a reinforced concrete box cast to drawings — whether the end use is a drainage / utility crossing or a protected underground chamber. Send the drawing set and we cast to the structural requirement.
This page is therefore positioned around what we actually supply: cast structural units, drawing-based production, QA documentation, and delivery support for active projects.
Material Specifications & Quality
All bunker and shelter units are manufactured to BS EN 1992-1-1 and ACI 318 structural concrete standards.
- Concrete Strength: Design mix C40/50 — minimum 5,000 PSI (34.5 MPa) at 28 days; standard production achieves 5,800 PSI (40 MPa).
- UHPC Option: Ultra-High Performance Concrete available for projects requiring enhanced blast resistance, reduced wall thickness, or extreme durability.
- Cement Type: OPC (Type I) for standard applications; SRC (Type V) available for saline/coastal environments.
- Reinforcement: Double-layer welded mesh using 12mm deformed steel bars (460 N/mm²) at 200mm × 200mm grid spacing.
- Coated Rebar Options: Epoxy-coated or galvanised steel rebar available for corrosion-critical or coastal applications. Rebar grade, size, and spacing designed per project structural requirements.
- Slab Thickness: 250mm standard; 150mm (6") available per structural design.
- Curing: Factory-controlled steam or water-pond curing to achieve optimal early strength.
- Finish: Smooth finish on internal surfaces for clean-room or equipment housing applications; standard F3/F4 off-shutter finish on external surfaces. Optional waterproofing membrane.
- Lifting Anchors: Integrated lifting anchors on all units for safe crane handling and placement.

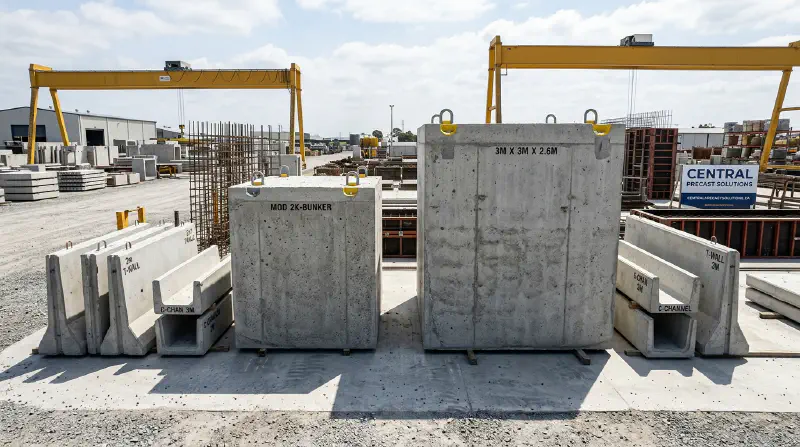

What We Manufacture

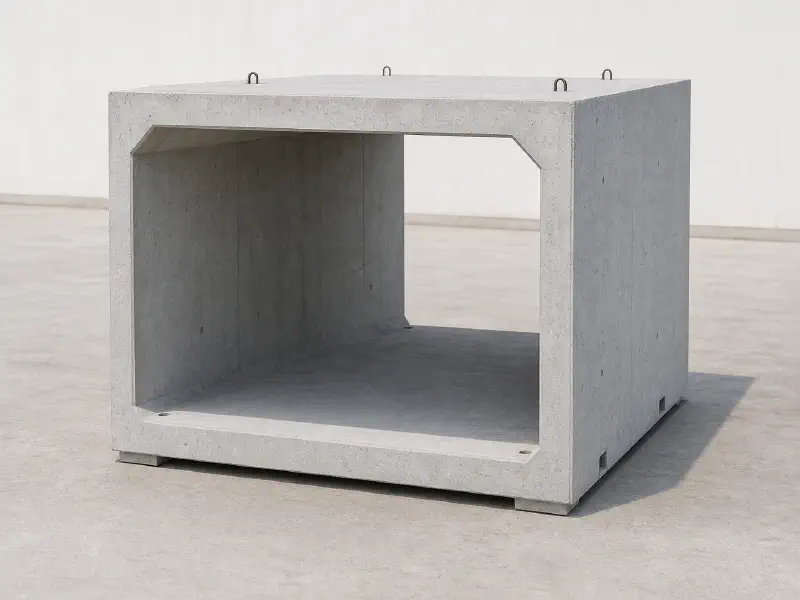

Bunker Shell Units
Reinforced bunker shell components cast for underground protective structures, enclosed concrete shelters, and project-specific secure spaces. These units are manufactured to client drawings and handling requirements, not generic catalogue assumptions.
C-Channel Units
C-Channel units are precast sectional components used inside bunker and shelter layouts where the structural arrangement calls for channel-type internal geometry, controlled routing, or boxed protective formation.
T-Wall Units
T-Wall units are used when the project design requires a central stem and bearing geometry inside the bunker assembly. They are typically drawing-led and sized around the structural requirement, not stocked as one universal format.
U-Channel Units
U-Channel units are supplied for underground bunker assemblies and related protective structures where the internal layout requires U-shaped precast geometry, formed channels, or protected recesses.
Typical Technical Range
| Specification | Value / Description |
|---|---|
| System Type | Bunker Shell / C-Channel / T-Wall / U-Channel |
| Internal Dimensions | Custom to project drawings |
| External Dimensions | Custom to project drawings |
| Wall / Slab Thickness | 150 mm to 250 mm typical |
| Rebar Diameter | 12 mm deformed steel |
| Reinforcement Layout | Project-specific cage / double mesh |
| Concrete Grade | C40/50 |
| Lifting Points | Integrated anchors or project-specific lifting details |
| Documentation | Shop drawings + QA/QC package |
How Clients Use These Units
Clients use these components in:
- underground bunker and shelter construction
- protective chambers and secured utility rooms
- infrastructure hardening packages
- project-specific security structures where cast concrete units are preferred over in-situ work
Delivery, Handling & Documentation
Because bunker and shelter packages are usually drawing-led and time-sensitive, we prepare around the project sequence rather than a generic retail dispatch model.
- Shop Drawings: Detailed fabrication drawings submitted before production.
- QA/QC Documentation: Material certificates, concrete test records, dimensional checks, and related production documentation.
- Handling Planning: Lifting anchors, transport orientation, and unloading assumptions reviewed before dispatch.
- Project Delivery: Sequenced transport for active sites in the UAE based on access, crane availability, and installation order.
Why Project Teams Call PRECAST UAE
- Factory Quality Control: Every unit is cast under controlled conditions with DCL-verifiable test cubes, ensuring consistent strength and dimensional accuracy.
- Custom Dimensions: As a precast manufacturer, we cast to your exact project specifications — any height, width, length, or wall thickness per structural design.
- Crane-Ready Delivery: Our fleet of crane-equipped trucks places units directly on prepared foundations — no assembly required.
- Custom Configurations: Available with openings, sleeves, embeds, and handling details where the drawing package requires them.
- System Understanding: We understand that clients may ask for bunker shells plus C-Channel, T-Wall, and U-Channel units inside the same package.
- Scalable Production: 200+ unit orders handled routinely — multiple units cast simultaneously for camp-scale or infrastructure-scale deployments.
What To Send For Quotation
Send your drawings, section details, thickness requirements, reinforcement notes, quantity split, delivery location, and required dates through our contact page. If you also need road safety products on the same project, see our Jersey barrier supply page.
Frequently Asked Questions
Is a precast bunker the same as a box culvert?
The two names overlap in the UAE market. A box culvert is a rectangular precast concrete enclosure — originally used for drainage and underpasses, but the same cast geometry is routinely specified for underground bunkers, protected utility rooms, and shelter chambers. We manufacture both from the same production line: RCC box culverts for water, service, and underpass crossings, and bunker-spec enclosures with heavier reinforcement, thicker walls, and sealed openings for protective use. Send your drawings and we will cast to the structural requirement.
Do you build complete bunkers or shelters?
We are a precast manufacturer. Our role is to cast and supply the structural concrete components — including box culverts, bunker shells, C-Channels, T-Walls, and U-Channels — that clients use in underground bunker and shelter construction and related protective packages.
What are C-Channel, T-Wall, and U-Channel units?
They are precast structural component types — C-Channels provide channel-type internal geometry, T-Walls offer central stem and bearing geometry, and U-Channels create U-shaped recesses or formed channels — used inside bunker layouts, protective chambers, or underground structural assemblies.
What do you need to quote bunker-related precast units?
Send drawings, section details, wall or slab thickness, reinforcement notes, lifting assumptions, required quantities, and delivery location. That allows us to price manufacturing and logistics correctly.
